Optima Defender™ X-90

Optima Defender™ Series Multilayer Board Online Automatic Optical Inspection Machine

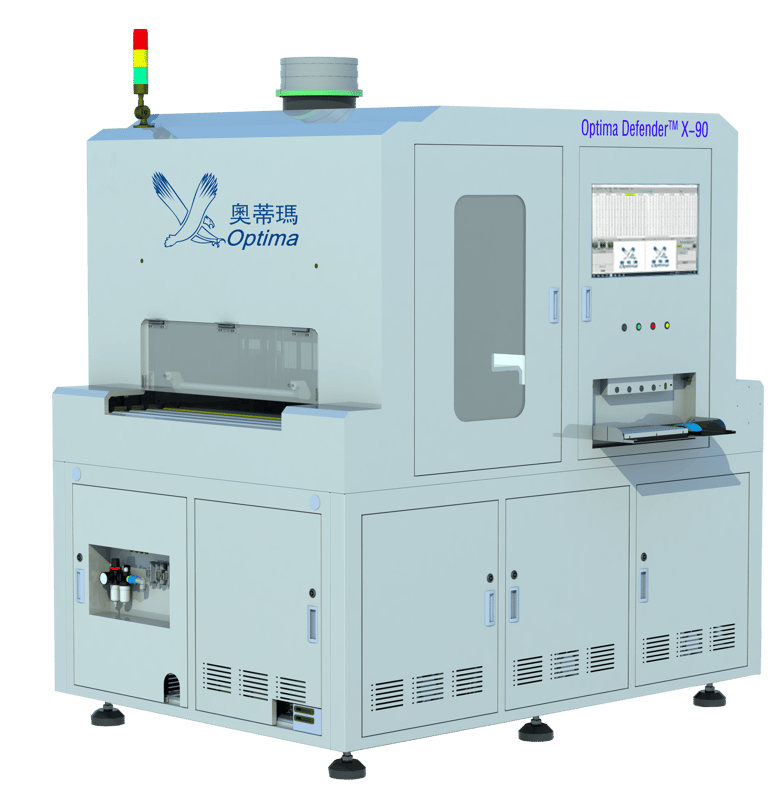

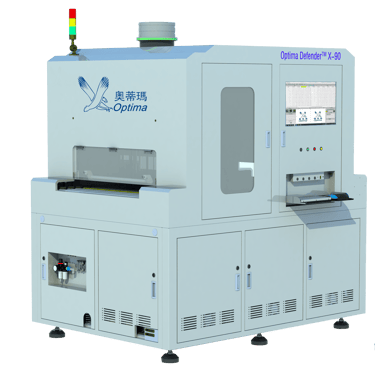

The Defender X-90‌

Defender X-90 is an advanced automatic optical inspection (AOI) system designed for efficient inspection needs of multilayer boards, equipped with multiple innovative technologies, capable of inspecting circuits with a minimum line width/spacing of 50µm.

●Innovative Flexible Roller Board Passing Technology‌

✦Ensures smooth board transmission during inspection, adapting to PCBs of various thicknesses and materials.

●Intelligent Data Processing‌

✦Built-in fully automatic intelligent ODB data processing system, quickly analyzes production data, improving inspection efficiency and accuracy.

●Deep Learning AI Analysis System‌

✦Integrates advanced AI deep learning technology for automatic defect recognition, classification analysis, and optimization of inspection algorithms.

✦Reduces false alarm rates by up to 70% compared to traditional AOI systems, effectively reducing manual intervention and improving overall quality inspection efficiency.

●Multi-functional Module Support‌

✦Smart Edge Alignment Machine: Provides precise edge alignment and protects the board from damage.

✦Board Thickness Measurement Module: Real-time detection of board thickness to ensure inspection compatibility.

✦Smart Variable Light Source: Dynamically adjusts the light source according to inspection needs, optimizing imaging effects.

✦Zoom Imaging System: Supports multi-level zooming to meet inspection needs of different sizes and details.
